P&C Industrial Minerals

Products · P&C Minerals

Ground calcium carbonate and talc, specified by d50 and d97.

Standard grades from 5 µm to 40 µm d50, with the d97 top cut stated for each — and the chemical and physical analysis behind them. Fineness can be adjusted within the production range to an agreed technical requirement.

Standard grades

Each grade is specified by its median particle size (d50) and its top cut (d97). Fineness is adjusted within the production range of 3–40 µm to the agreed technical requirement, and customer-specific grades can be developed subject to technical feasibility.

Ground calcium carbonate

Graded50d97Whiteness
GCC 55 µm≤ 15 µm92 – 95 %
GCC 1010 µm≤ 25 µm92 – 95 %
GCC 2020 µm≤ 45 µm92 – 95 %
GCC 4040 µm≤ 80 µm92 – 95 %

Talc powder — Grade 2 and Grade 3

Graded50d97
Talc 55 µm≤ 15 µm
Talc 1010 µm≤ 25 µm
Talc 2020 µm≤ 45 µm
Talc 4040 µm≤ 80 µm

Whiteness-Z depends on the talc quality: 86 % min for Grade 2 and 83 % min for Grade 3 (measured on 325 mesh powder).

Asbestos-free. Both talc grades are tested asbestos-free: the P&C technical specification reports record asbestos as nil for Grade 2 and asbestos-free for Grade 3.

Products

Analysis and properties by product.

Values from P&C's technical specification reports; the particle size shown on each card is the grade in that report, and the standard d50/d97 grades are listed above. Fineness can be adjusted within the production range to an agreed technical requirement; final suitability depends on the grade and the customer's formulation. Full reports on request.

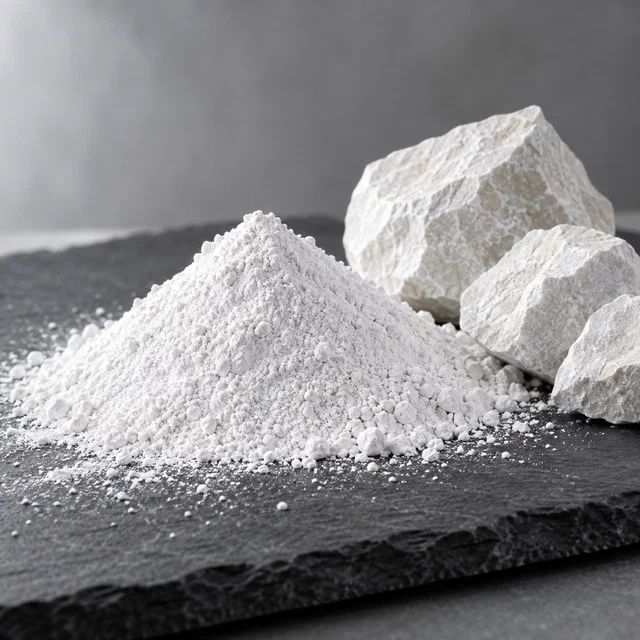

Ground calcium carbonate — limestone powder

Uncoated · 90 % below 10 µm · whiteness 92–95 %

Request a sample or a quotation

High-purity limestone powder from the Eocene limestone of Beni Khaled and Samalout, Minya, for industrial applications that need a bright, fine filler. Typical applications: paints and coatings, PVC and plastics, masterbatch, paper, rubber, adhesives, sealants and construction materials. Chemical analysis, whiteness and particle size from the P&C technical specification report.

Chemical analysis

CaCO3
99 % ± 0.2 %
CaO
55 – 55.5 %
MgO
0.05 – 0.15 %
Al2O3
0.05 – 0.1 %
Fe2O3
0.02 – 0.04 %
SiO2
0.1 – 0.2 %
Loss on ignition
43 – 43.5 %

Physical properties

Whiteness
92 – 95 %
Particle size
90 % below 10 µm
Oil absorption
17 g/100 g (typical)
Moisture
0.2 % (typical)
pH
9.0 (typical)
Specific gravity
2.70 (typical)

Values marked typical are indicative; the final specification is confirmed per order and application.

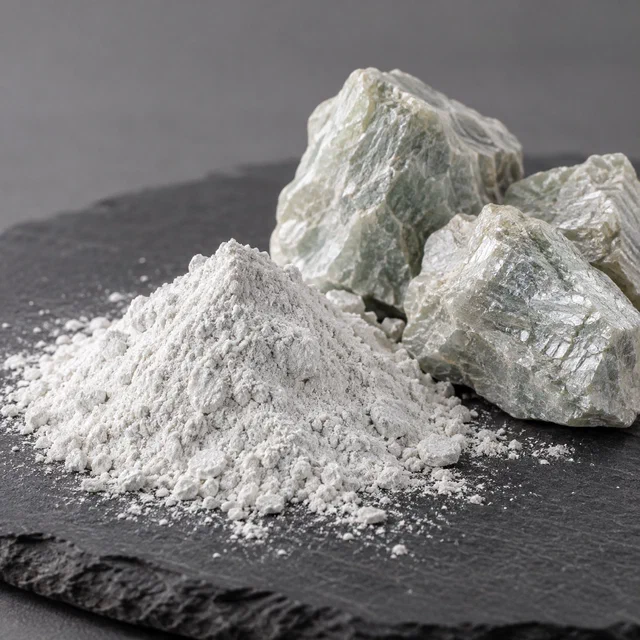

Talc powder — Grade 2

Asbestos-free (tested) · whiteness-Z 86 % min · 90 % below 20 µm

Request a sample or a quotation

The higher-purity talc grade from the Wadi Allaqi deposits, Aswan: more than 80 % talc, asbestos nil. Typical applications: paints and coatings, plastics, ceramics, rubber and other formulations where talc is used as a functional filler. Values from the P&C technical specification report.

Chemical analysis

SiO2
60 – 61 %
MgO
30 – 31 %
Al2O3
0.5 – 1 %
Fe2O3
0.2 – 0.4 %
CaO
0.5 – 1 %
MnO · P2O5
0.01 % · 0.02 %
Loss on ignition
5.5 – 6.5 %

Mineralogical and physical

Talc
> 80 %
Chlorite
< 12 %
Carbonate
< 4 %
Asbestos
Nil
Whiteness-Z
86 % min (on 325 mesh powder)
pH
7.2
Particle size
90 % below 20 µm

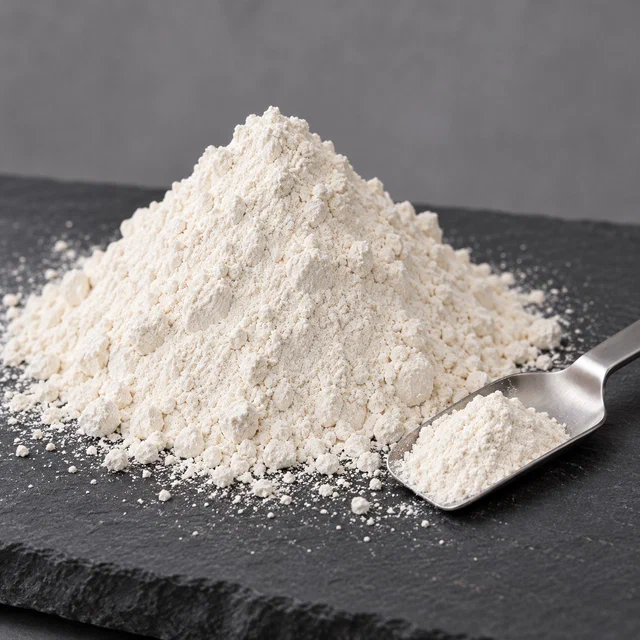

Talc powder — Grade 3

Asbestos-free (tested) · whiteness-Z 83 % min · 90 % below 20 µm

Request a sample or a quotation

General-purpose talc grade from the Wadi Allaqi deposits, Aswan, with a higher carbonate content, for formulations where Grade 2 purity is not required. Values from the P&C technical specification report.

Chemical analysis

SiO2
53 – 58 %
MgO
28 – 30 %
Al2O3
1 – 2 %
Fe2O3
0.5 – 0.7 %
CaO
3 – 6 %
MnO · P2O5
0.01 % · 0.04 %
Loss on ignition
8 – 9 %

Mineralogical and physical

Asbestos
Free
Whiteness-Z
83 % min (on 325 mesh powder)
pH
7.2
Particle size
90 % below 20 µm

Samples and quotations

Share your target specification.

The team will evaluate a customised grade for your application. Free samples are available for quality evaluation before purchase.
